LoadCell - Strength Machine Controller
A gym machine you own should take a plan you wrote. This app makes that happen, carefully.
Verified Packet Codec
Resistance Steps
Reference Exercises
Tech Stack
The problem
The machine's own app decides which exercises, modes and plans you can run. Someone who owns the hardware and wants their own programme, offline history and a stricter safety model has no supported way to get it.
The challenge
The BLE protocol was observed, not documented, so every command stays capability gated and the physical pedal remains the mechanical-stop confirmation. Resistance is clamped to a conservative 2.0 to 37.5 kg range in 0.5 kg steps. Rep detection reads position, velocity and measured resistance from the machine and has to be right without ever weakening the working-load limits. Android can kill the process mid-set, so set and rep persistence had to survive a restart.

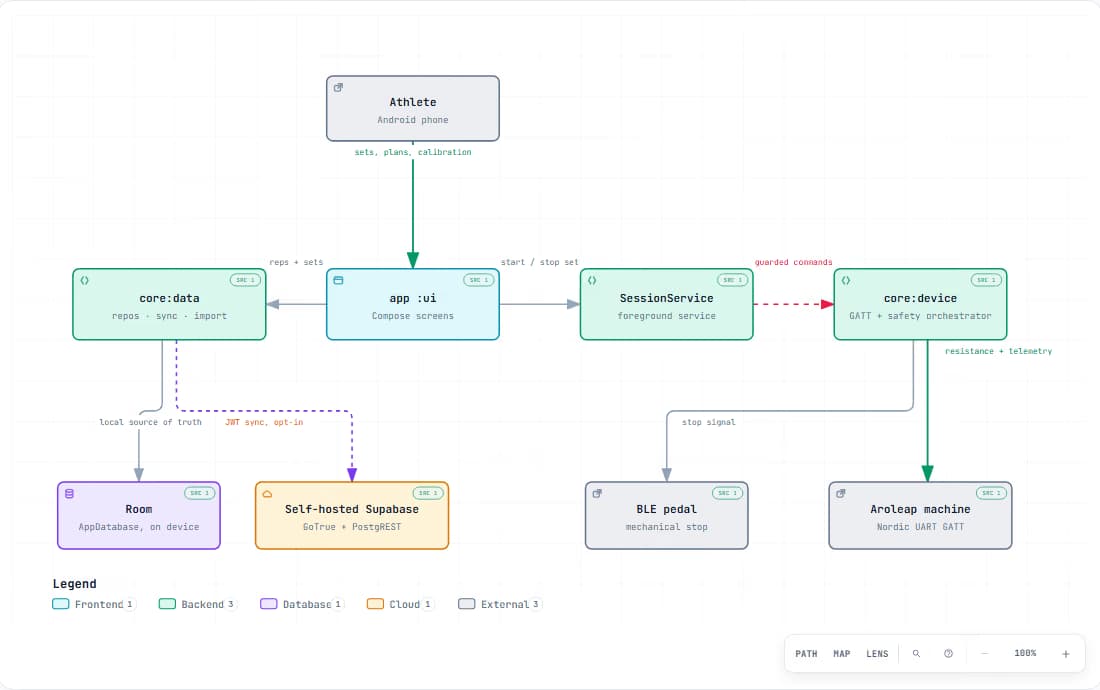

System Design
Compose UI, ViewModels and domain services over a BLE device boundary, a foreground connection service and local SQLite, with optional cloud sync.
A modular, unidirectional Kotlin app: Compose screens send intents to ViewModels, which call domain use cases for the programme and workout engine, plan import (CSV, XLSX, DOCX, PDF), and the BLE device boundary. A verified CRC32 packet codec sits under BLE discovery, initialisation, notification and write paths. A foreground service owns the machine connection and a bounded minimum-load recovery request on restart. A Room database holds exercises, plans, sessions and per-rep metrics on the device as the source of truth, with an opt-in sync to self-hosted Supabase. An offline exercise reference catalogue of 302 records is vendored with attribution and licence notices.
Results
Custom exercises, standalone workouts, scheduled programmes, set and rep ranges, supersets, session history, PRs, backup and restore, and CSV/XLSX import are implemented and installed on a tablet. The app connects to the confirmed AroleapX and reads its identity over BLE; the software gate passed on 27 September 2026. Loaded use still waits on an attended hardware validation pass, and an iOS port has an approved PRD with the technical design under review.
