OraScan H - Halitosis IoT Device

The problem

Bad breath affects 1 in 4 people, but most never get it properly diagnosed because it's embarrassing to bring up with a doctor. People need a way to check privately at home - without buying expensive clinical lab equipment or visiting a specialist.

The challenge

Halitosis affects an estimated 25% of the population but is severely under-diagnosed due to social stigma around clinical evaluation. The product needed to be a consumer-grade, handheld device that anyone could use at home - not a lab instrument. The engineering challenges were multi-layered: H2S sensor signal is noisy and temperature-sensitive, requiring careful analog conditioning; the Raspberry Pi Zero 2W has only 1 GB RAM, constraining the on-device AI pipeline; the Flutter mobile app needed to reliably pair via BLE, stream sensor readings, and present results in a clinically actionable way.

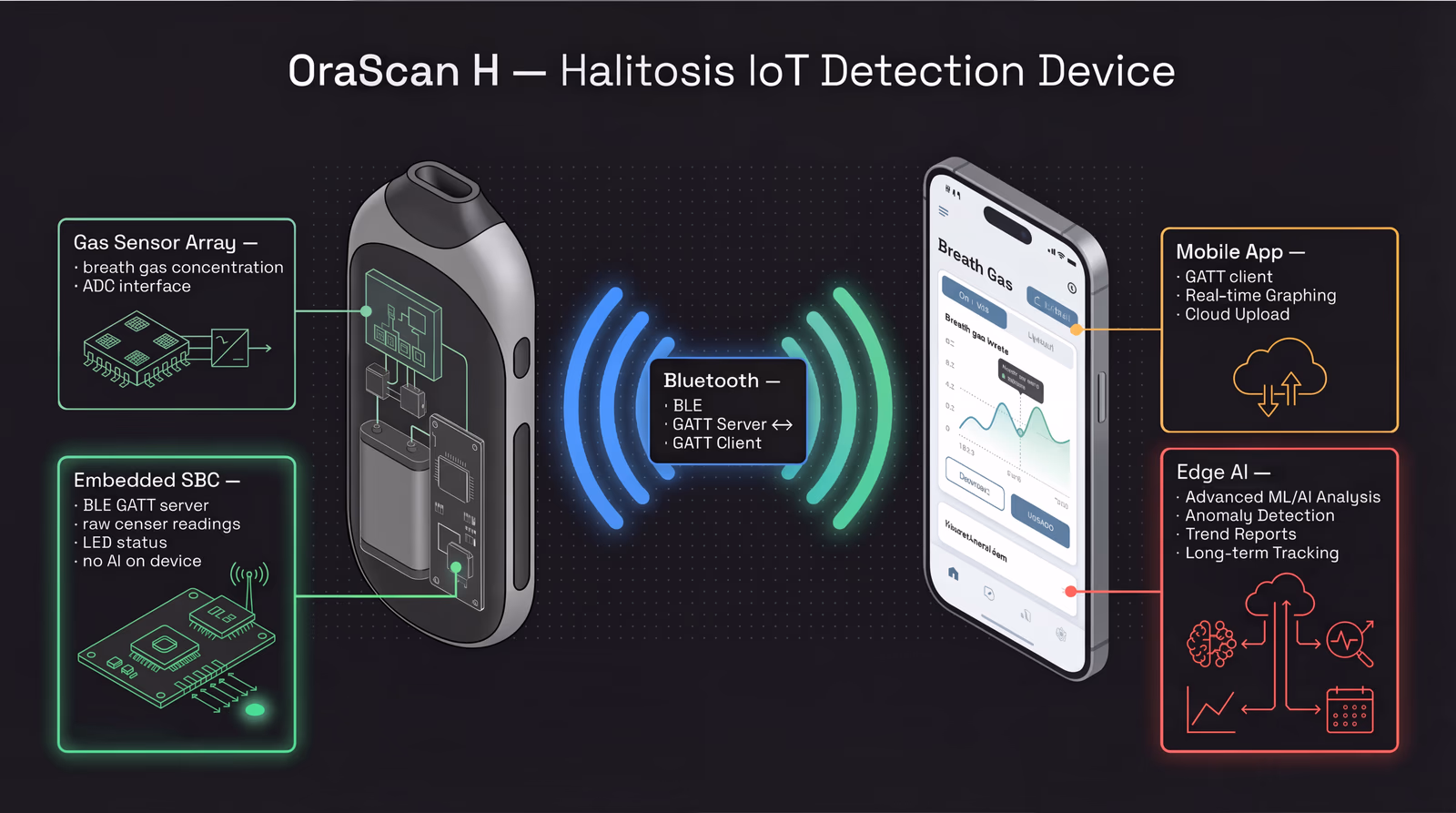

Architecture & System Design

IoT device with dual gas sensor arrays connected to mobile app via wireless protocol. On-device machine learning model processes sensor readings for analysis. Mobile app provides real-time results and trend history. Backend service handles data persistence and optional cloud synchronization with secure firmware update mechanism.

The hardware stack centres on a Raspberry Pi Zero 2W running a Python BLE GATT server (D-Bus/BlueZ). Two gas sensor arrays (DTS4H2S + MQ316) are read via ADS1115 ADC over I2C, with GPIO-based LED status indicators and a serial interface for auxiliary sensors. Sensor readings feed into a TensorFlow Lite model running on-device that classifies halitosis severity. The Flutter mobile app (flutter_blue_plus) discovers and pairs with the device, streams live readings, and renders severity scores with trend history. A PHP 8.2 + MySQL 8.0 backend on Hostinger handles session persistence and optional cloud sync. OTA firmware updates are signed and verified on-device before installation.

Code Walkthrough

3-step walk-through of the production implementation. File paths and intent appear above each block.

1. 01

   Step 1 of 3

   Serial sensor with auto-reconnect and framed protocol parsing

   OraScan_H_DeviceCode/h2s_sensors.py

   UART-attached gas sensors drop out randomly - loose connectors, kernel USB events, or the sensor's own firmware resetting. The driver thread has to survive a disconnect without restarting the whole device process, so reconnection sits behind an exponential-backoff loop while frame parsing validates every read with a checksum before trusting the value.

   pythonCopy

   class SerialGasSensor(ABC):
       RECONNECT_MIN_DELAY = 1.0
       RECONNECT_MAX_DELAY = 60.0

       def __init__(self, port: str, baudrate: int, name: str):
           self.port, self.baudrate, self.name = port, baudrate, name
           self.serial_conn: serial.Serial | None = None
           self.current_value = 0.0
           self.running = False

       def start(self) -> bool:
           try:
               self.serial_conn = serial.Serial(self.port, self.baudrate, timeout=1)
               self.running = True
               threading.Thread(target=self._loop_with_reconnect, daemon=True).start()
               return True
           except serial.SerialException as e:
               logger.error("%s: failed to open %s: %s", self.name, self.port, e)
               return False

       def _loop_with_reconnect(self) -> None:
           while self.running:
               try:
                   self._monitor_loop()
               except (serial.SerialException, OSError) as e:
                   if not self.running:
                       break
                   logger.warning("%s: disconnected (%s), reconnecting…", self.name, e)
                   if not self._reconnect():
                       break

       def _reconnect(self) -> bool:
           delay = self.RECONNECT_MIN_DELAY
           while self.running:
               try:
                   if self.serial_conn and self.serial_conn.is_open:
                       self.serial_conn.close()
               except Exception:
                   pass
               try:
                   self.serial_conn = serial.Serial(self.port, self.baudrate, timeout=1)
                   logger.info("%s: reconnected on %s", self.name, self.port)
                   return True
               except serial.SerialException:
                   time.sleep(delay)
                   delay = min(delay * 2, self.RECONNECT_MAX_DELAY)
           return False

       @abstractmethod
       def _monitor_loop(self) -> None: ...


   class FramedGasSensor(SerialGasSensor):
       """Subclass parses a 9-byte frame with a 1-byte checksum per reading."""
       FRAME_LEN = 9

       def _checksum_valid(self, frame: bytes) -> bool:
           # Two's-complement checksum across bytes 1..7, compared to frame[8].
           expected = ((~sum(frame[1:8])) + 1) & 0xFF
           return expected == frame[-1]

       def _monitor_loop(self) -> None:
           while self.running:
               if self.serial_conn.in_waiting < self.FRAME_LEN:
                   time.sleep(0.1)
                   continue
               frame = self.serial_conn.read(self.FRAME_LEN)
               if not self._checksum_valid(frame):
                   logger.debug("%s: checksum mismatch, re-aligning", self.name)
                   continue
               high, low = frame[5], frame[6]
               self.current_value = ((high << 8) | low) / 100.0

   Takeaway

   Serial devices need three layers of defence: a checksum on every frame, a reconnect loop with exponential backoff, and a daemon thread that hides all of it from the rest of the app.

2. 02

   Step 2 of 3

   BLE connection health with RSSI hysteresis

   OraScan_H_Mobile_App/lib/features/ble/data/services/connection_monitor_service.dart

   A BLE link that's technically connected but losing packets is worse than a clean disconnect - the UI looks fine while the session silently corrupts. The monitor polls RSSI every few seconds and emits weak / critical events when the signal crosses thresholds, but uses a 5-dB hysteresis gate so a hovering signal near the threshold doesn't spam the user with 'signal weak → signal ok → signal weak' toasts.

   dartCopy

   enum ConnectionEventType { connected, disconnected, signalWeak, signalCritical }

   class ConnectionEvent {
     final ConnectionEventType type;
     final int? rssi;
     ConnectionEvent({required this.type, this.rssi});
   }

   class ConnectionMonitorService {
     ConnectionMonitorService(this._settings);
     final SettingsService _settings;

     Timer? _pollTimer;
     BluetoothDevice? _device;
     int? _lastWeakRssi;
     int? _lastCriticalRssi;

     final _events = StreamController<ConnectionEvent>.broadcast();
     Stream<ConnectionEvent> get events => _events.stream;

     Future<void> startMonitoring(BluetoothDevice device) async {
       _device = device;
       _events.add(ConnectionEvent(type: ConnectionEventType.connected));
       _pollTimer?.cancel();
       _pollTimer = Timer.periodic(const Duration(seconds: 3), (_) => _poll());
     }

     Future<void> stopMonitoring() async {
       _pollTimer?.cancel();
       _device = null;
       _lastWeakRssi = null;
       _lastCriticalRssi = null;
     }

     Future<void> _poll() async {
       final device = _device;
       if (device == null) return;
       try {
         final rssi = await device.readRssi();
         _checkThresholds(rssi);
       } catch (_) {
         _events.add(ConnectionEvent(type: ConnectionEventType.disconnected));
       }
     }

     void _checkThresholds(int rssi) {
       final weak     = _settings.getWeakSignalThreshold();
       final critical = _settings.getCriticalSignalThreshold();
       const deadband = 5; // dB hysteresis - avoids flapping near the threshold

       if (rssi < critical) {
         if (_lastCriticalRssi == null ||
             (rssi - _lastCriticalRssi!).abs() >= deadband) {
           _lastCriticalRssi = rssi;
           _events.add(ConnectionEvent(type: ConnectionEventType.signalCritical, rssi: rssi));
         }
       } else if (rssi < weak) {
         if (_lastWeakRssi == null || (rssi - _lastWeakRssi!).abs() >= deadband) {
           _lastWeakRssi = rssi;
           _events.add(ConnectionEvent(type: ConnectionEventType.signalWeak, rssi: rssi));
         }
       } else {
         _lastWeakRssi = null;
         _lastCriticalRssi = null;
       }
     }
   }

   Takeaway

   Hysteresis is what turns a noisy physical signal into a usable UX event stream - without the 5-dB deadband, any device on the edge of range would flood the UI with alternating weak/ok toasts.

3. 03

   Step 3 of 3

   D-Bus GATT characteristic with read/write callbacks

   OraScan_H_DeviceCode/ble_gatt_server.py

   BlueZ 5.82+ dropped the higher-level helper libraries, so the device exposes its GATT service by registering a D-Bus object directly. The trick is keeping business logic out of the D-Bus layer: the Characteristic class just forwards Read/Write into injected callbacks, so each feature (sensor stream, device info, config write) only has to implement two plain Python functions.

   pythonCopy

   BLUEZ_SERVICE_NAME = "org.bluez"
   GATT_CHRC_IFACE    = "org.bluez.GattCharacteristic1"
   DBUS_PROP_IFACE    = "org.freedesktop.DBus.Properties"


   class Characteristic(dbus.service.Object):
       """Generic GATT characteristic - delegates reads/writes to callbacks."""

       def __init__(
           self,
           bus,
           index: int,
           uuid: str,
           flags: list[str],
           service,
           read_cb: Callable[[], bytes] | None = None,
           write_cb: Callable[[bytes, dict], None] | None = None,
       ):
           self.path      = f"{service.path}/char{index}"
           self.uuid      = uuid
           self.flags     = flags
           self.service   = service
           self.read_cb   = read_cb
           self.write_cb  = write_cb
           self.value     = bytearray()
           self.notifying = False
           super().__init__(bus, self.path)

       def get_properties(self) -> dict:
           return {
               GATT_CHRC_IFACE: {
                   "Service": self.service.get_path(),
                   "UUID":    self.uuid,
                   "Flags":   self.flags,
               }
           }

       @dbus.service.method(DBUS_PROP_IFACE, in_signature="s", out_signature="a{sv}")
       def GetAll(self, interface: str):
           if interface != GATT_CHRC_IFACE:
               raise InvalidArgsException()
           return self.get_properties()[GATT_CHRC_IFACE]

       @dbus.service.method(GATT_CHRC_IFACE, in_signature="a{sv}", out_signature="ay")
       def ReadValue(self, options):
           if self.read_cb is not None:
               value = self.read_cb()
               if value is not None:
                   self.value = bytearray(value)
           return dbus.Array(self.value, signature="y")

       @dbus.service.method(GATT_CHRC_IFACE, in_signature="aya{sv}")
       def WriteValue(self, value, options):
           self.value = bytearray(value)
           if self.write_cb is not None:
               self.write_cb(bytes(value), options)

   Takeaway

   Expose D-Bus as a plumbing layer, not a domain layer - each GATT characteristic is just a thin wrapper over two callbacks, so adding a new feature is a pure-Python exercise with zero D-Bus knowledge required.

Results

OraScan H reached 92% software completion in Sprint 3 with production-ready mobile app and backend. BLE pairing achieves stable connection within 3 seconds. The TFLite classifier runs on the Pi Zero 2W in under 500ms. The Flutter app is live on both iOS and Android with a full onboarding, pairing, and results flow. Hostinger backend handles session persistence with rate-limited API endpoints and MIME-validated image uploads.

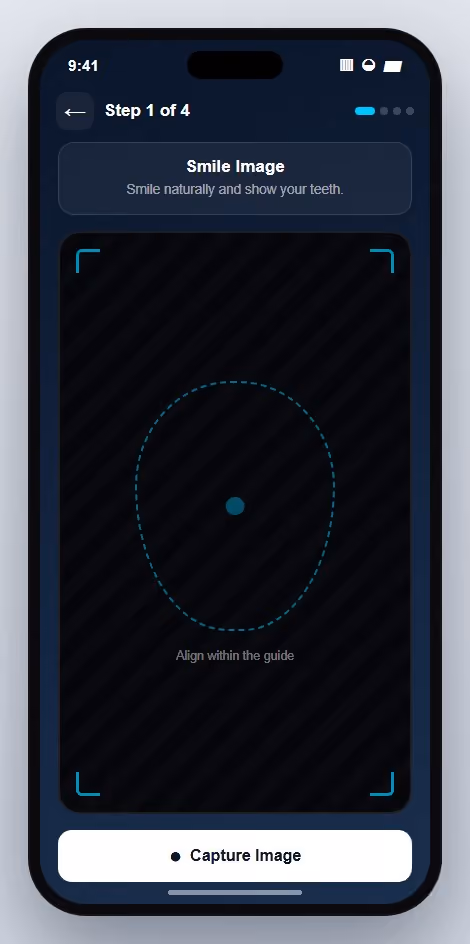

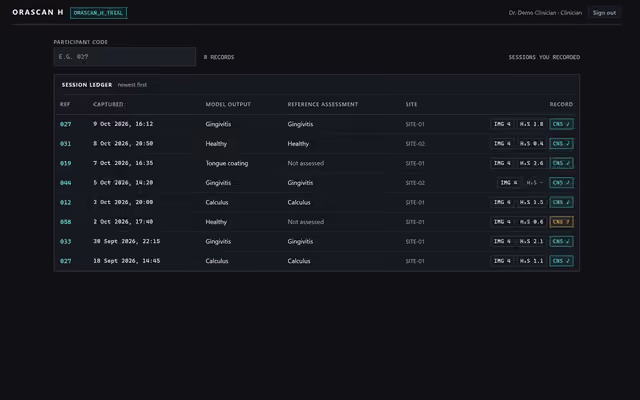

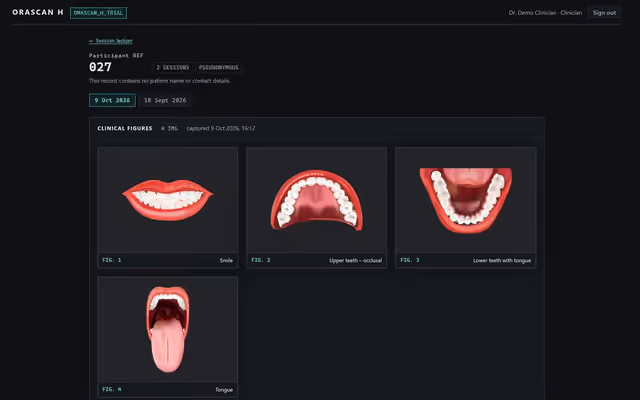

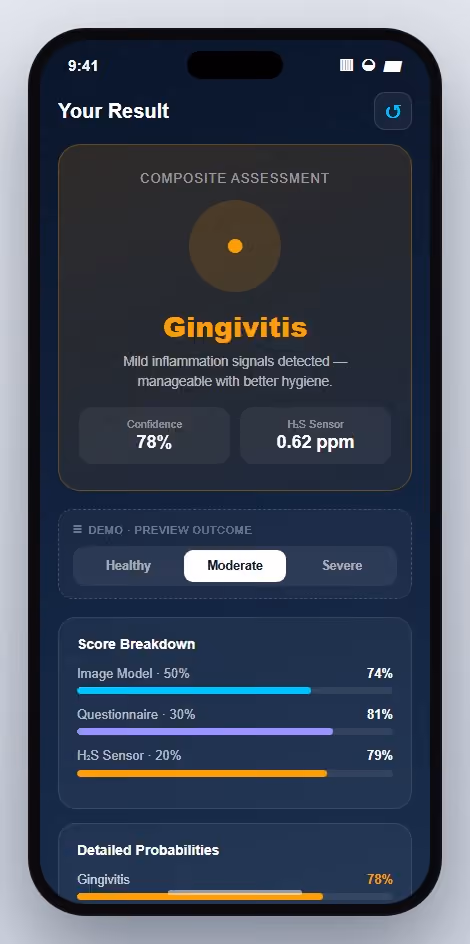

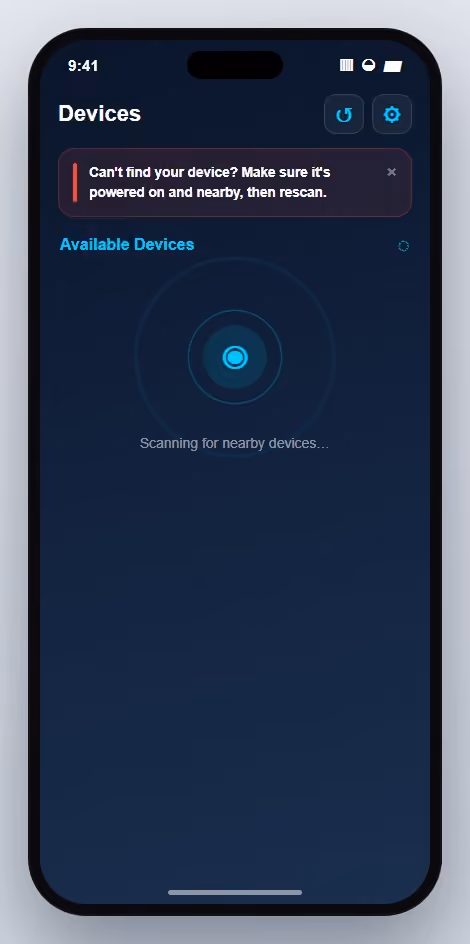

Gallery & Demos

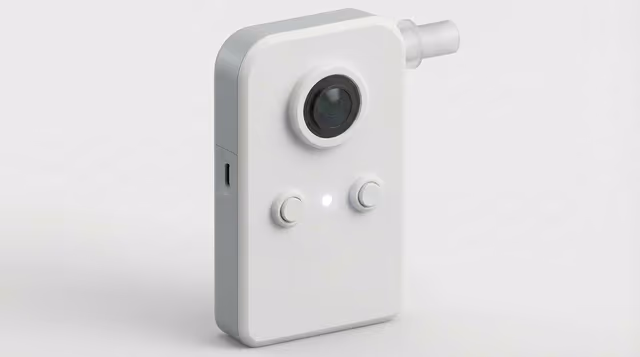

Device Front View

Handheld form factor with mouthpiece intake, dual gas sensor arrays inside, and GPIO-driven LED status indicators.

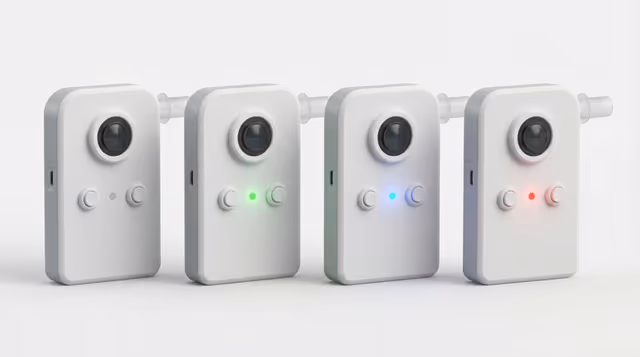

LED Status States

Four GPIO-driven LED states: off (standby), green (scan complete / pass), blue (scanning), red (alert / fail).

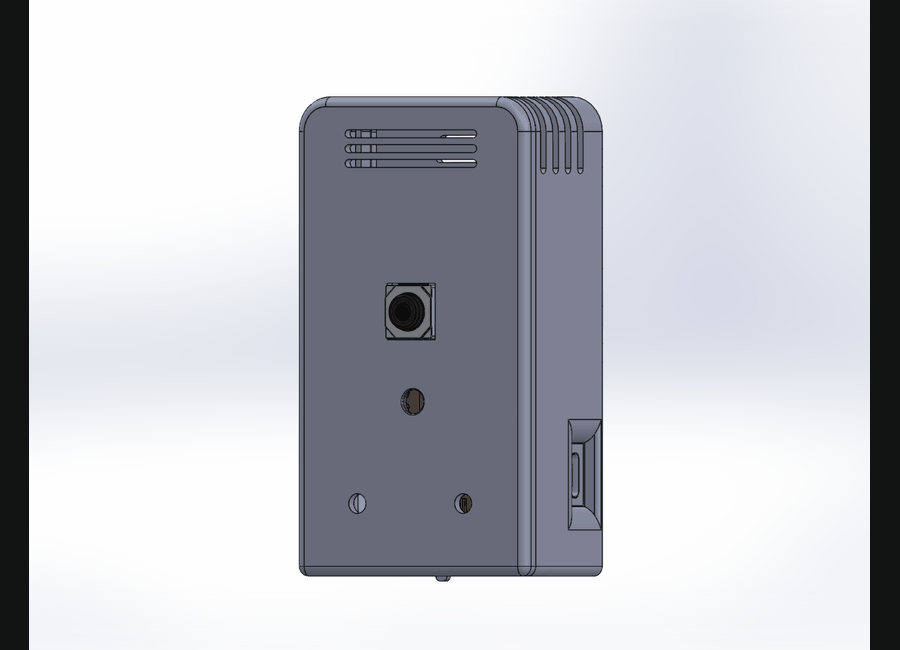

Hardware Evolution
