Monocular Depth Estimation for UAV Perch Landing

No depth sensor — just math. Recovering 3D pose from a single camera using image moments and projective geometry.

0 cm

Error @ 25 cm

0 cm

Error @ 1 m

0 mm

Focal Length

Tech Stack

C++OpenCVHSV SegmentationImage MomentsKalman FilterCMakeVisual Servoing

The Challenge

Autonomous UAV landing on a perch requires knowing the perch's 3D position and the camera's attitude relative to it — without a depth sensor, IMU, or GPS. The system had to recover all of this from a single video frame using only the geometric properties of the detected blob: its centroid, principal axes, and apparent size. The depth estimation formula Z = f·X/X₀ is simple in principle but sensitive to blob detection noise, so the pipeline needed to be robust to partial occlusion and varying lighting.

Architecture & System Design

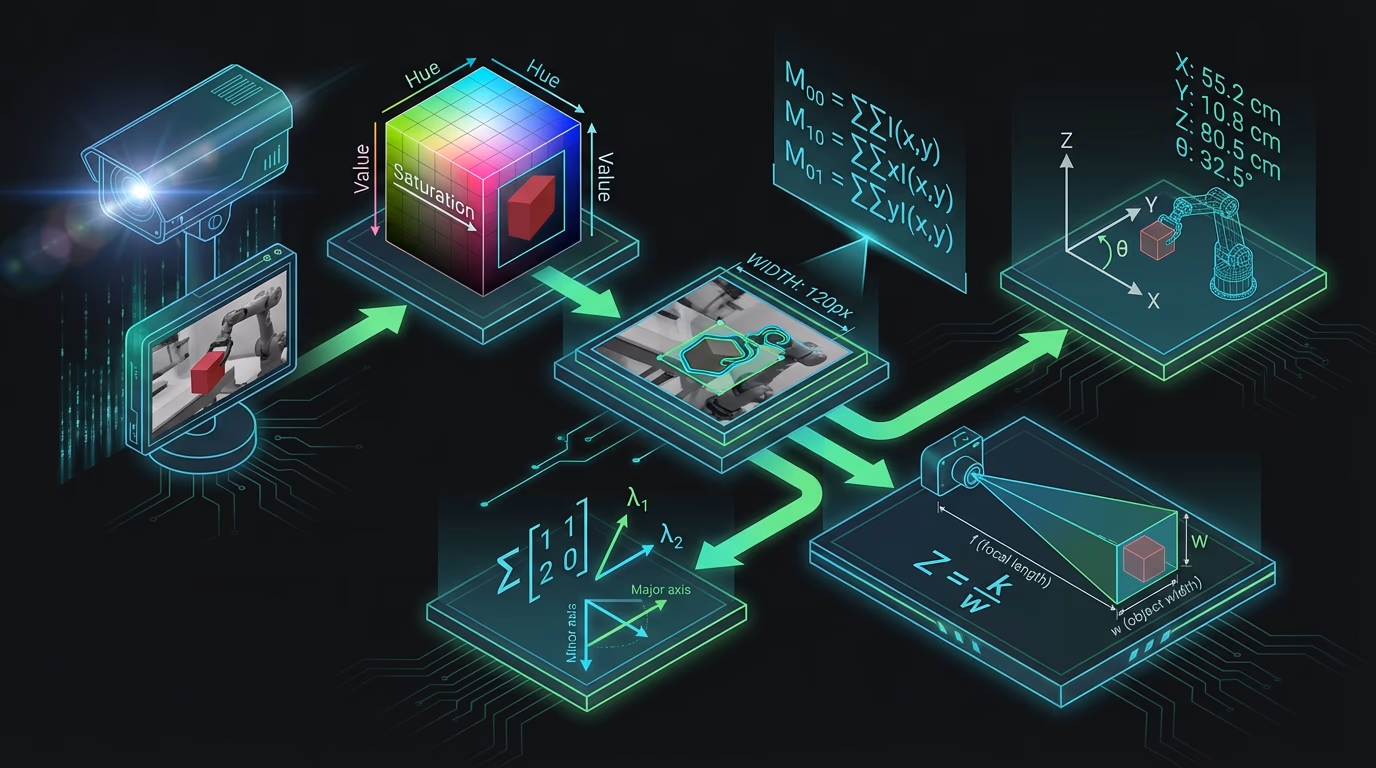

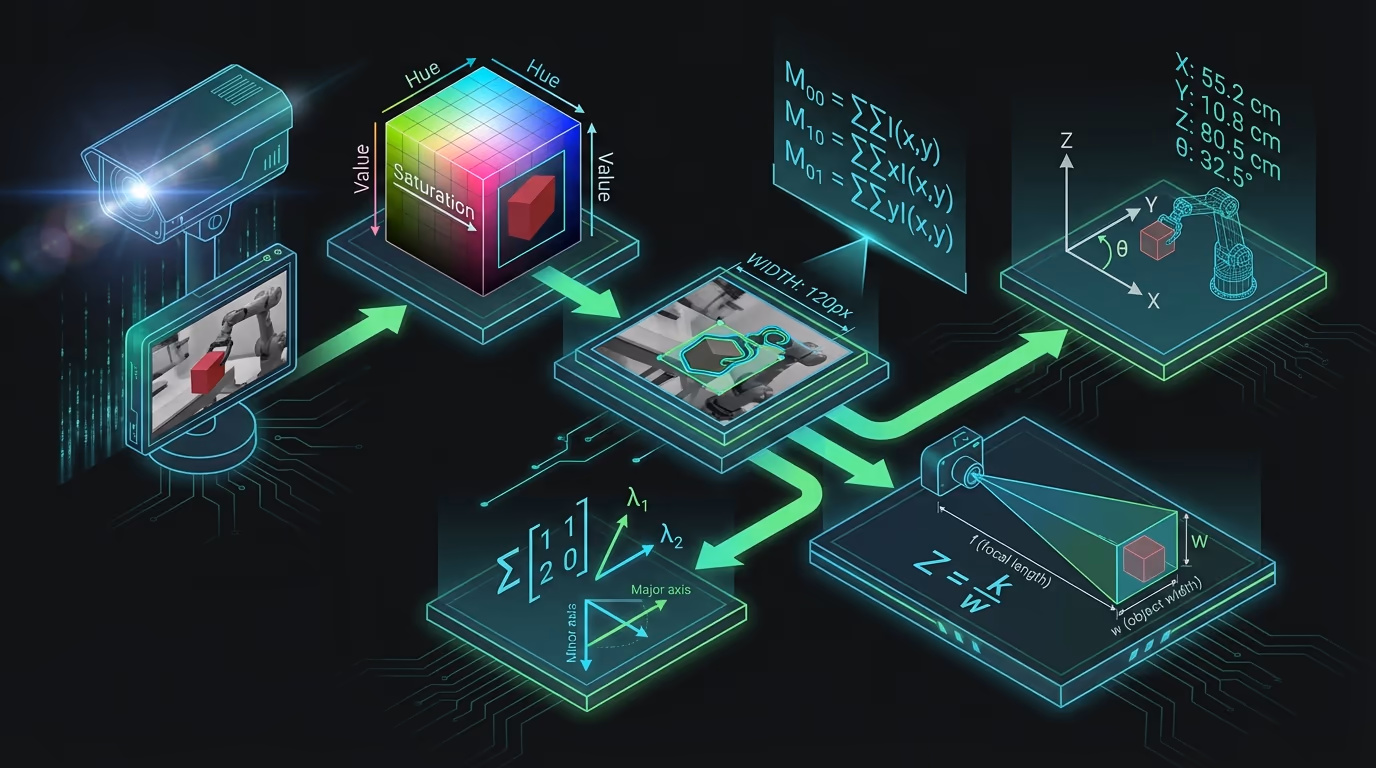

Monocular Depth Estimation for UAV Perch Landing system architecture

Single camera estimates 3D target pose using computer vision: image processing extracts target features, geometric math recovers position and orientation from 2D image moments. Enables closed-loop visual control without depth sensor.

Full system schematic available upon request

The pipeline runs in real time on each video frame: (1) Convert BGR → HSV and threshold for the target colour (yellow: H=20–30, S=50–255, V=100–255) to isolate the blob. (2) Compute zeroth, first, and second-order image moments (M00, M10, M01, M20, M02, M11) to recover centroid (cx, cy) and shape covariance. (3) Eigendecompose the 2×2 covariance matrix to get principal axes and orientation angle θ — this gives camera roll/pitch relative to the perch. (4) Depth: Z = f · X_real / X_pixels, where focal length f=3.22 mm was measured via calibration. Output: [cx, cy, θ, Z] written to a position matrix file and used as the visual error signal for the PID controller. A complementary OpenCV toolkit was developed alongside: Canny edge detection with interactive threshold sliders, HSV range calibration tool, and SURF feature matching.

Code Walkthrough

3-step walk-through of the production implementation — file paths and intent shown above each block.

  1. Step 1 of 3

    HSV colour segmentation and morphological cleanup

    vision/blob.cpp

    The perch marker is a known yellow colour. Converting to HSV decouples hue (colour identity) from brightness, making the threshold robust to shadows and changing illumination that would break an RGB threshold. Morphological open+close removes noise speckles and fills small holes before computing moments — noisy blobs produce wildly wrong centroids.

    cpp
    // blob.cpp — Step 1: Isolate the yellow perch marker via HSV threshold.
    // Focal length f = 3.22 mm measured via checkerboard calibration.

    cv::Mat hsv;
    cv::cvtColor(frame, hsv, CV_BGR2HSV);

    // HSV range calibrated with the interactive calibration tool
    cv::Mat mask;
    cv::inRange(hsv,
        cv::Scalar(20,  50, 100),   // lower: H=20, S=50,  V=100
        cv::Scalar(30, 255, 255),   // upper: H=30, S=255, V=255
        mask);

    // Morphological cleanup: open removes speckle, close fills holes
    cv::Mat kernel = cv::getStructuringElement(
        cv::MORPH_ELLIPSE, cv::Size(5, 5));
    cv::morphologyEx(mask, mask, cv::MORPH_OPEN,  kernel);
    cv::morphologyEx(mask, mask, cv::MORPH_CLOSE, kernel);
    Takeaway

    HSV separation lets you tune H for colour identity and S/V for saturation/brightness independently — three sliders instead of six, and the threshold stays stable under lab lighting changes.

  2. Step 2 of 3

    Image moments → centroid and principal axis angle

    vision/blob.cpp

    Image moments up to second order give the centroid (M10/M00, M01/M00) and the covariance of the blob shape. Eigendecomposing the 2×2 covariance matrix recovers the principal axis angle θ — this is the camera's roll/pitch attitude relative to the perch surface, extracted from a single frame with no IMU or depth sensor.

    cpp
    // blob.cpp — Step 2: Image moments → centroid and orientation angle.

    cv::Moments m = cv::moments(mask, true);

    if (m.m00 < 500) {
        // Blob too small — target not in frame or heavily occluded; skip frame
        posMatrix << "0 0 0 0
    ";
        continue;
    }

    double cx = m.m10 / m.m00;   // centroid x [pixels]
    double cy = m.m01 / m.m00;   // centroid y [pixels]

    // Normalised second-order central moments (covariance of blob shape)
    double mu20 = m.mu20 / m.m00;
    double mu02 = m.mu02 / m.m00;
    double mu11 = m.mu11 / m.m00;

    // Principal axis angle from covariance eigendecomposition
    // θ = 0.5 · atan2(2μ₁₁, μ₂₀ − μ₀₂)  [radians]
    double theta = 0.5 * std::atan2(2.0 * mu11, mu20 - mu02);
    Takeaway

    The atan2 formula for principal axis is a direct eigendecomposition of the 2×2 blob covariance — no matrix library needed, and it correctly handles the degenerate case when mu20 == mu02.

  3. Step 3 of 3

    Monocular depth from focal-length triangulation

    vision/blob.cpp

    With no depth sensor, depth is recovered from apparent blob size: Z = f · X_real / X_pixels, where X_real is the known physical perch diameter. The second moment √μ₂₀ approximates the blob's pixel half-width, giving depth without a stereo pair. Results are written to a position file consumed by the PID controller node.

    cpp
    // blob.cpp — Step 3: Depth from focal-length triangulation.
    // Z = f · X_real / X_pixels   (f=3.22 mm, X_real=25 mm perch diameter)
    // Calibrated proportionality constant k = f · X_real = 8e-4 m·m

    double blob_half_width = std::sqrt(mu20);   // pixel std-dev ≈ half-width

    // Guard against divide-by-zero when blob is tiny or fully occluded
    if (blob_half_width < 2.0) {
        posMatrix << "0 0 0 0
    ";
        continue;
    }

    double Z_est = 8e-4 / blob_half_width;   // estimated depth [m]

    // Write [cx, cy, theta, Z] — consumed by PID servo controller
    posMatrix << cx << " " << cy << " " << theta << " " << Z_est << "
    ";

    // Debug overlay: centroid dot + depth annotation
    cv::circle(frame, cv::Point(cx, cy), 4, cv::Scalar(0, 255, 0), -1);
    cv::putText(frame, cv::format("Z=%.2fm", Z_est),
                cv::Point(10, 30), cv::FONT_HERSHEY_SIMPLEX,
                0.7, cv::Scalar(0, 255, 0), 2);
    Takeaway

    The constant k (8e-4) encodes both the focal length and the known object size — recalibrate just k when the perch diameter changes, and the depth formula stays the same.

Results

Depth estimation accuracy: 0.67 cm error at 25 cm, 5.7 cm at 1 m, and 25 cm at 2 m — performance degrades linearly with distance as expected from the triangulation model. Orientation estimation successfully recovered camera attitude (roll/pitch) relative to the perch surface at all tested distances. The full pipeline ran at real-time video rates in C++ on a laptop. Results were validated against a Vicon motion capture ground-truth system and documented in the final project report.

Gallery & Demos

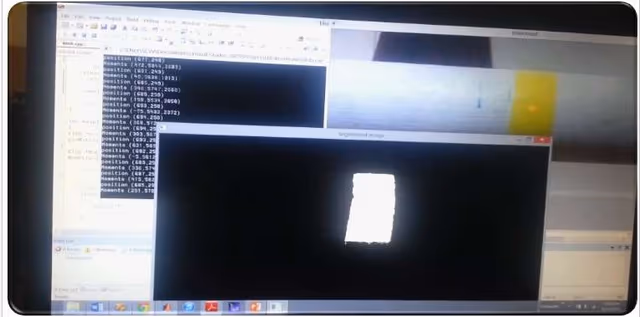

Monocular Depth Estimation for UAV Perch Landing screenshot

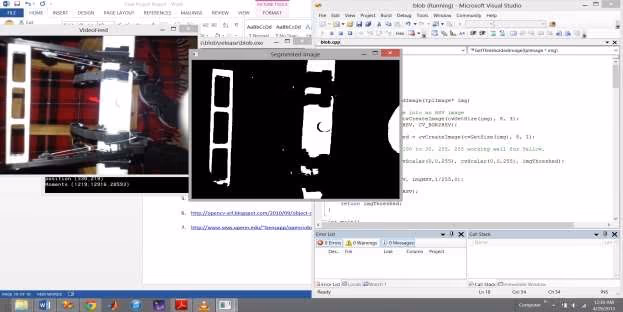

Monocular Depth Estimation for UAV Perch Landing screenshot
